J30J variation of type A-ZKN in-line contact for PCB Connector
The termination style is in-line contact, and the resaeu is 2.54×2.54 (row × line).
J30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCB
brief introductionJ30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCBtop ↑
J30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCB
  ?The termination style is in-line contact for PCB, and the reseau is 2.54×2.54(row × line)



J30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCB
ReceptacleJ30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCBtop ↑
J30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCB
  ?J30JA-9?15?21?25?31?37?51ZKN
   The picture of product
J30J variation of type A-ZKN in-line contact for PCB Connectors ReceptacleJ30J variation of type A-ZKN in-line contact for PCB Connectors Receptacle
J30JA-9ZKN
J30JA-31ZKN

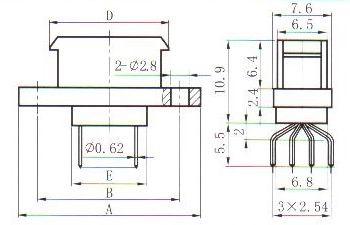

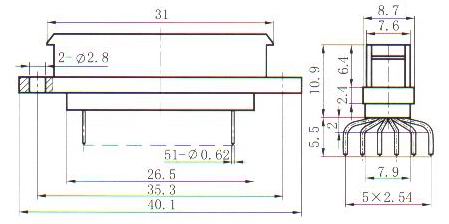

   Product outline dimensions
J30J variation of type A-ZKN in-line contact for PCB Connectors ReceptacleJ30J variation of type A-ZKN in-line contact for PCB Connectors Receptacle
J30JA-9~37ZKN
J30JA-51ZKN
Dimensions
A
B
D
E
J30JA-9ZKN
23.4
18.6
14.3
9.8
J30JA-15ZKN
27.4
22.6
18.3
13.8
J30JA-21ZKN
31.1
26.3
22
17.5
J30JA-25ZKN
33.7
28.9
24.6
20.1
J30JA-31ZKN
37.5
32.7
28.4
24.1
J30JA-37ZKN
41.4
36.6
32.3
27.8
J30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCB
The Picture of ConnectorJ30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCBtop ↑
J30J variation of type A-ZKN in-line contact for PCB J30J variation of type A-ZKN in-line contact for PCB

J30J variation of type A-ZKN in-line contact for PCB Connectors The Picture of ConnectorJ30J variation of type A-ZKN in-line contact for PCB Connectors The Picture of Connector
Insertion couple
A
G
J30JA-9TJ/ZKN
23.4
8.1
J30JA-15TJ/ZKN
27.4
8.1
J30JA-21TJ/ZKN
31.1
8.1
J30JA-25TJ/ZKN
33.7
8.1
J30JA-31TJ/ZKN
37.5
8.1
J30JA-37TJ/ZKN
41.4
8.1
J30JA-51TJ/ZKN
40.1
10
