J62 series Connector
Total
>
CONNECTORS
>
D-SUB (Rectangle)
>
J62 series
J62 series Connector
The product includes only one type for 11 cores; The termination style with cables is solder contact;
Product solid picture
li>
brief introduction
li>
specification
li>
how to order
li>
Product Outline Dimensions
li>
panel cutouts
li>
The Picture of Connector
li>
J62 series J62 series
Product solid picture
J62 series J62 series
top ↑
J62 series J62 series
J62 series J62 series
brief introduction
J62 series J62 series
top ↑
J62 series J62 series
?The product includes only one type for 11 cores;
?The termination style with cables is solder contact;
?The Performance Standards:
Q/Lk.J (02)21-2002 Standard for J62 subminiature rectangular connectors
J62 series J62 series
specification
J62 series J62 series
top ↑
J62 series J62 series
Ambient Temperature Range
-55~+125 ?
Relative Humidity
up to 95% at +40?
Vibration
10~2000 Hz?196 m/s
2
Shock
490 m/s
2
11ms
Current Rating
3A(f0.76 contact)
10A(f1.59 contact)
Contact Resistance
=5mO(f0.76 contact)
=10m(f1.59 contact)
Insulation Resistance
=5000 MO
Dielectric Strength
1000 V
Durability
500 times
J62 series J62 series
how to order
J62 series J62 series
top ↑
J62 series J62 series
J62 - 11 TK/ZJ
? ? ?
?:J62 —Series Prefix
?:11 —Number of contacts: 11
?:TK/ZJ—Type of connectors and contacts:
TK—socket in the plug
ZJ—pin in the receptacle
TK?ZJ is fixation couple
For example
J62-11TK
Means the J62 plug connector, the number of contacts is 11, and the type of connectors and contacts is socket in the plug.
J62 series J62 series
Product Outline Dimensions
J62 series J62 series
top ↑
J62 series J62 series
The picture of product
J62-11TK
J62-11ZJ

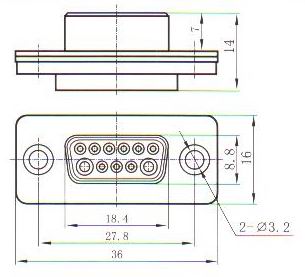

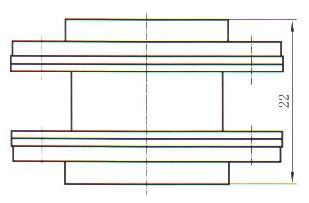

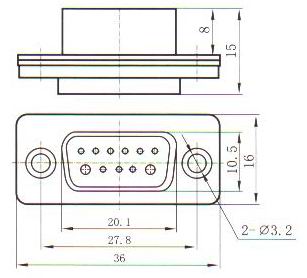

The outline dimensions of products
J62-11TK
J62-11ZJ
J62 series J62 series

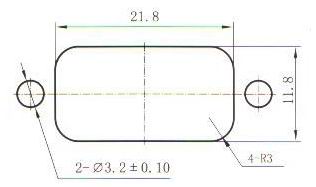

panel cutouts
J62 series J62 series
top ↑
J62 series J62 series
J62 series J62 series
The Picture of Connector
J62 series J62 series
top ↑
J62 series J62 series
