J14F series Connector
Series J14F,Rectangular,Electrical Connector
Product solid pictureJ14F series J14F seriestop ↑
J14F series J14F series
J14F series Connectors Product solid picture
J14F series J14F series
specificationJ14F series J14F seriestop ↑
J14F series J14F series
Current rating
2A
Contact resistance
less than 0.008 ohm in normal conditions
less than 0.010 ohm after aging test
Insulation resistance
500 megohms in normal conditions
300 megohms in hot conditions
10 megohms in wet conditions
Dielectric withstanding voltage
500V in normal conditions
250V in low atmospheric pressure
250V in wet conditions
Durability
500 cycles
J14F series J14F series
Product Outline DimensionsJ14F series J14F seriestop ↑
J14F series J14F series

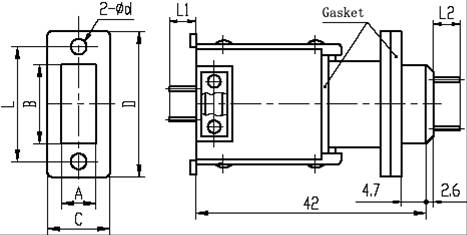

Model and size , outline and mount dimension
J14F series Connectors Product Outline Dimensions
Note: ‘L1、L2’ is the length of cable which is confirmed by customers. L1 is 1500mm and L2 150mm if customers do not especially demand it.

Type of products

Number of  contacts

A1

L

A2

A3

B1

B2

J14F-9TK/J14F-9ZJB J14F-9TK/ J14F-9ZJL

J14F-9TJ/ J14F-9ZKB J14F-9TJ/ J14F-9ZKL

9

19

14.5

9.4

12.4

6.7

4.7

J14F-15TK/ J14F-15ZJB J14F-15TK/ J14F-15ZJL

J14F-15TJ/ J14F-15ZKB J14F-15TJ/ J14F-15ZKL

15

21

16

10.8

13.8

7.9

5.9

J14F-27TK J14F-27/ZJB J14F-27TK/ J14F-27ZJL

J14F-27TJ/ J14F-27ZKB J14F-27TJ/ J14F-27ZKL

27

26

21.5

16.4

19.4

7.9

5.9

J14F-36TK/ J14F-36ZJB
J14F-36TK/ J14F-36ZJL

J14F-36TJ/ J14F-36ZKB J14F-36TJ/ J14F-36ZKL

36

31

26

20.6

23.6

7.9

5.9

J14F-51TK/ J14F-51ZJB J14F-51TK/ J14F-51ZJL

J14F-51TJ/ J14F-51ZKB J14F-51TJ/ J14F-51ZKL

51

38

33

27.6

30.6

7.9

5.9

Note: ‘n’ is the number of the contacts.

J14F series J14F series
Contact ArrangementsJ14F series J14F seriestop ↑
J14F series J14F series

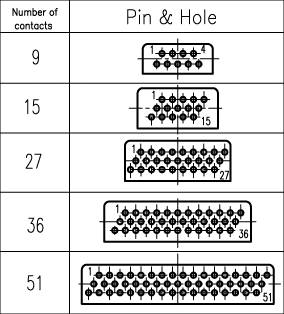

The interface contact arrangement of receptacles
J14F series Connectors Contact Arrangements
J14F series J14F series
Environmental ConditionJ14F series J14F seriestop ↑
J14F series J14F series
Operating temperature range
-55- +125oC
Relative humidity
up to 90%-95% at 40+2,-2oC
Atmospheric pressure
101.3kPa-1.33Pa
Vibration
196m/s2 from 10-2000Hz
Shock
980m/s2
Acceleration
780m/s2
J14F series J14F series
Applicable Documents J14F series J14F seriestop ↑
J14F series J14F series

J    14    F  –   9   Z     K   B

(1)   (2)   (3)    (4)  (5)    (6)   (7)

(1)Basic Identifler

(2)Serial number of design

(3)Serial number of modification

(4)Number of contact

(5)Type of connector: T-plug Z-receptacle

(6)Type of contact: J-pin K-socket

(7)Style of mount: B-panel L-cable

J14F series J14F series
