Y37A series Connector
Series Y37A,Circular,Electrical Connector
Product solid pictureY37A series Y37A seriestop ↑
Y37A series Y37A seriesY37A series Connectors Product solid pictureY37A series Y37A series
Brief introductionY37A series Y37A seriestop ↑
Y37A series Y37A series
This series of connectors have the characteristics of bayonet locking mechanism, of quick coupling, of reliable coupling, of environment resistance, of many keys avoiding error mate and of anti-electromagnetic interference, so they are suitable for electric connection in the low frequency AC/DC circuit.
This series of connectors modeled on series снц２３and снц２８connectors of Russia can completely interchange with series снц２３and снц２８ connectors of Russia.
Y37A series Y37A series
specificationY37A series Y37A seriestop ↑
Y37A series Y37A series
1. Current rating (A)
Diameter
1.0
1.5
2.0
Current rating
5
10
20
2. Contact resistance (milliohm)
Diameter
1.0
1.5
2.0
Material
Copper
Iron
Copper
Iron
Copper
Iron
Before aging test
6
12
5
10
4
8
After aging test
8
16
7
14
6
12
3. Insulation resistance (megohms)
Normal temperature conditions
High temperature conditions
Wet-hot conditions
low atmosphere conditions
5000
Normal
Sinter
100
500
500
200
4. Dielectric withstanding voltage (V)
Normal temperature condition
Wet-hot conditions
low atmosphere conditions (1.33Pa)
1000
250
150
5. Gas pressurize:
     Latex pressurize :the let out is less than 1x10-3Pa.L/s
     Glass sinter pressurize (only socket): the let out is less than 1x10-7Pa.L/s
6. Durability :500 cycles
Y37A series Y37A series
Product Outline DimensionsY37A series Y37A seriestop ↑
Y37A series Y37A series

1. Plug (cable type mounting)

Y37A series Connectors Product Outline Dimensions
Shell size
D
d
L
14
φ22
M14×0.5
30
28
φ26
M18×1
30
22
φ29.5
M22×1
30
24
φ32
M24×1
30
27
φ35
M27×1
30
30
φ38
M30×1
30
33
φ42
M33×1
29.5
36
φ46
M36×1
29.5
39
φ49
M39×1
29.5

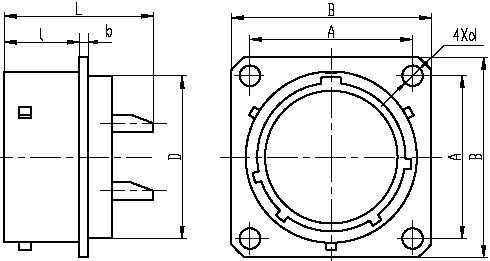

2.Receptacle without glass-sintering seal (flange mounting)
Y37A series Connectors Product Outline Dimensions
Shell size
A
B
b
D
d
L
l
14
16.5
21.5
1.5
M14×0.5
φ2.2
30
11.5
18
19.5
26
1.5
M18×1
φ3.2
30
11.5
22
23
29.5
1.5
M22×1
φ3.2
30
11.5
24
25
31.5
1.5
M24×1
φ3.2
30
11.5
27
27
33.5
1.5
M27×1
φ3.2
30
11.5
30
31
38
1.5
M30×1
φ3.2
30
11.5
33
34
41.5
2
M33×1
φ3.2
31.5
14.5
36
36.5
44.5
2
M36×1
φ3.2
31.5
15.5
39
40
46.5
2
M39×1
φ3.2
31.5
15.5

3.  Receptacle with glass-sintering seal (flange mounting)
 Y37A series Connectors Product Outline Dimensions
Shell size
A
B
b
D
d
L
l
14
16.5
21.5
1.5
φ14
φ2.2
23.5
11.5
18
19.5
26
1.5
φ18
φ3.2
23.5
11.5
22
23
29.5
1.5
φ22
φ3.2
23.5
11.5
24
25
31.5
1.5
φ24
φ3.2
23.5
11.5
27
27
33.5
1.5
φ27
φ3.2
23.5
11.5
30
31
38
1.5
φ30
φ3.2
23.5
11.5
33
34
41.5
2
φ33
φ3.2
26
14.5
36
36.5
44.5
2
φ36
φ3.2
26
15.5
39
40
46.5
2
φ39
φ3.2
26
15.5
Y37A series Y37A series
Contact ArrangementsY37A series Y37A seriestop ↑
Y37A series Y37A series

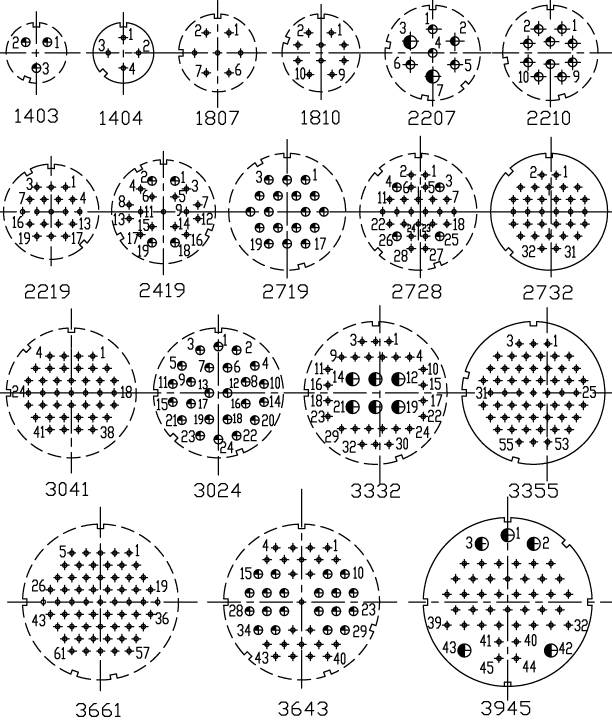

Y37A series Connectors Contact Arrangements
Note:  Cavity identifying numbers in the figure of contact arrangement shown here represent cavity identifying numbers in the mating interface.
            Four digit are under the figure of contact arrangement, previous two digit of which represent shell size and subsequent two digit of which represent number of contact.
         Size and sign of contact in the characteristic
         Model with dashed round is developing model.
         Angle value between keys shown here in the “Angle between the keys”
Y37A series Y37A series
Contact Arrangement and The PictureY37A series Y37A seriestop ↑
Y37A series Y37A series

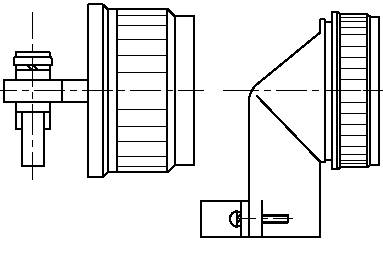

Y37A series Connectors Contact Arrangement and The Picture

II rear accessories                    III rear accessories

Y37A series Connectors Contact Arrangement and The Picture
IV rear accessories                    VI rear accessories
Y37A series Y37A series
Environmental ConditionY37A series Y37A seriestop ↑
Y37A series Y37A series
Operating temperature range
-55- +15oC
Relative humidity
up to 90%-95% at 40+2,-2oC
Atmospheric pressure
101.3kPa-1.33Pa
Vibration
196m/s2 from 10-2000Hz
Random vibration
0.4G2/Hz
Shock
980m/s2
Constant acceleration
980m/s2
Y37A series Y37A series
PerformanceY37A series Y37A seriestop ↑
Y37A series Y37A series
Model interpretation and performed specification

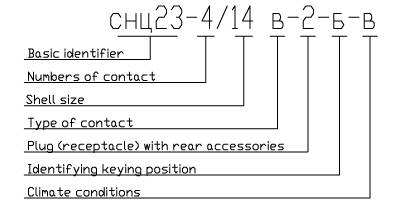

1. Model interpretation of Russian products
Y37A series Connectors Performance

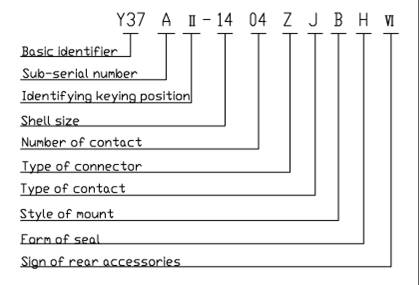

2.  Model interpretation of 693' products
 Y37A series Connectors Performance

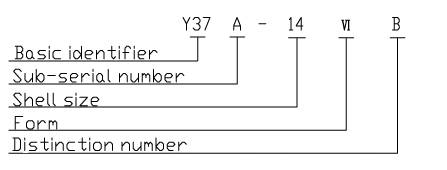

3. Rear accessories interpretation

 Y37A series Connectors Performance
 4.  Interpretation of Symbol

Interpretation of Symbol
Symbol of Russian
Symbol of 693 factory
Basic identifier
снц23、снц28
Y37A (A is sub-serial number)
No sign—standard keying position
No sign-standard position of key
а,б,в,г
No sign-standard position of keyⅡ、Ⅲ、Ⅳ、Ⅴ
number of contact
3、4、7、10、19、24、28
32 41、43、45、55、61
3、4、7、10、19、24、28
32、41、43、45、55、61
shell size
14、18、22、24、27、30、33、36、39
14、18、22、24、27、30、33、36、39
Type of contact:
B-pin P-socket
J-pin  K-socket
Plug, receptacle and  rear accessories
1. Receptacle with simple rear accessories

2. Receptacle with rear accessories and straight exit

4.Receptacle with rear accessories and right-angle exit

6. Plug with rear accessories and straight exit

8. Plug with rear accessories and right-angle exit

11. Plug with simple rear accessories

12. Receptacle with rear accessories and thermoplastic sleeve

13. Receptacle with rear accessories and thermoplastic sleeve
T—plug Z—receptacle

Form of rear accessories

No sign—without rear accessories

II-- with thermoplastic sleeve

III-with single clamping plate

IV--with double clamping plate

VI-right-angle exit
style of mount:
-
L—cable B、B1-square flange

B2—nut mounting

B3—tin-plated mounting

B4--switch
form of seal:
-
M—seal with glue
H (only for receptacle)-glass-sintering seal
Climate conditions
B-all weather
-
  5 Angle between the keys

Type of Russian （Type of  693）
а
б
в
г
No-lable
3/14        （1403）
160 （Ⅱ）
-
-
-
0
4/14        （1404）
-
135 （Ⅱ）
-
-
0
7/18        （1807）
90 （Ⅱ）
-
-
-
0
10/18       （1810）
-
70 （Ⅱ）
-
-
0
7/22        （2207）
80 （Ⅱ）
170 （Ⅲ）
225 （Ⅳ）
-
0
10/22       （2210）
-
100 （Ⅱ）
195 （Ⅲ）
-
0
19/22       （2219）
30 （Ⅱ）
-
225 （Ⅲ）
-
0
19/24       （2419）
30 （Ⅱ）
120 （Ⅲ）
245 （Ⅳ）
-
0
19/27       （2719）
30 （Ⅱ）
195 （Ⅲ）
-
-
0
28/27       （2728）
45 （Ⅱ）
150 （Ⅲ）
195 （Ⅳ）
-
0
32/27       （2732）
45 （Ⅱ）
135 （Ⅲ）
-
270 （Ⅳ）
0
24/30       （3024）
90 （Ⅱ）
135 （Ⅲ）
200 （Ⅳ）
-
0
41/30       （3041）
45 （Ⅱ）
90 （Ⅲ）
-
-
0
32/33       （3332）
90 （Ⅱ）
120 （Ⅲ）
-
-
0
55/33       （3355）
75 （Ⅱ）
90 （Ⅲ）
-
165 （Ⅳ）
0
43/36       （3643）
90 （Ⅱ）
135 （Ⅲ）
200 （Ⅳ）
250 （Ⅴ）
0
61/36       （3661）
90 （Ⅱ）
160 （Ⅲ）
190 （Ⅳ）
-
0
45/39       （3945）
90 （Ⅱ）
180 （Ⅲ）
270 （Ⅳ）
315 （Ⅴ）
0

Note: identifying numbers of keying position represented by Ⅱ、Ⅲ、Ⅳ、Ⅴ in the bracket are corresponding with Russian identifying numbers of keying position in this model.
 6.  Performed specification
Type of product
Code name of performed specification
Y37A
Q/Jc170-98
