European plug connector-3 ConnectorTotal > CONNECTORS > DIN41612 > European plug connector-3
European plug connector-3 Connector
DIN 41612 connectors fulfill the requirement of DIN Standard IEC60603-2。The contacts include:10,14,16,18,20,32,48,64 ,96 cores。DIN 41612 connectors comply with the requirement of the RoHS Directive
Product Outline DimensionsEuropean plug connector-3 European plug connector-3top ↑
European plug connector-3 European plug connector-3
European plug connector-3 Connectors Product Outline DimensionsEuropean plug connector-3 Connectors Product Outline Dimensions
European plug connector-3 European plug connector-3
Brief introductionEuropean plug connector-3 European plug connector-3top ↑
European plug connector-3 European plug connector-3
Material:
?Contact: phosphor bronze
?Surface of contact:2um/80u” nickel
                                3um/120u” Tin
?Insulator body: Glass filled thermo plastic
                             (UL94V-0 rated), brown
    Electrical:
?Current rating:5amp/pin max
?Contact resistance:<20mO
?Insulation resistance:>1000mO min.at DC500V
?Dielectric with standing:500V AV(1minute)voltage
Mechanical:
?Operating temperature:-55? to+110?
                   (continuous) -67? F to+230o F
?Soldering temperature:260?,10seconds max.
                                        503o F, 10seconds max.
European plug connector-3 European plug connector-3
The PCB PatternEuropean plug connector-3 European plug connector-3top ↑
European plug connector-3 European plug connector-3

Terminal
Contacts
Arrangement of the contact
Type
Horizontal soldering
Bottom pin:0.6×0.8
European plug connector-3 Connectors The PCB Pattern
32
European plug connector-3 Connectors The PCB Pattern
6 032 332 1 7 1
European plug connector-3 Connectors The PCB Pattern
48
European plug connector-3 Connectors The PCB Pattern
6 032 348 1 7 1
Vertical soldering
Bottom pin:0.6×0.8
European plug connector-3 Connectors The PCB Pattern
32
European plug connector-3 Connectors The PCB Pattern
6 032 332 1 7 1
European plug connector-3 Connectors The PCB Pattern
48
European plug connector-3 Connectors The PCB Pattern
6 032 348 1 5 1
Remark:1. Contact plating: A part is(Contact part)– Gold, Other –stannum and plumbum;2. Can offer the PCB install clamp; 3. Contact terminal type: S-2CI 1.6mm  PCB soldering. S-3CI type and 2.4mm PCB soldering. 4. Can install the bundle at the assigned(designated) position. 5. For special choice, please contact with the headquarters or the representative at the local.

European plug connector-3 European plug connector-3
how to orderEuropean plug connector-3 European plug connector-3top ↑
European plug connector-3 European plug connector-3

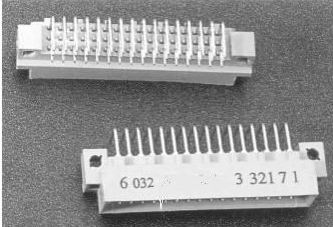

    ? the picture of product
European plug connector-3 Connectors how to order

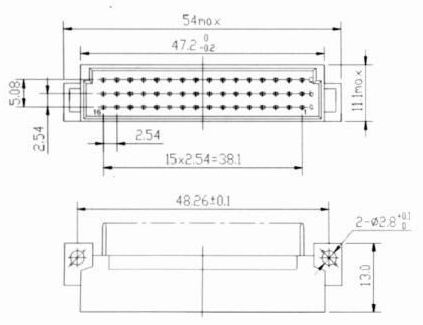

    ? Product Outline Dimensions
European plug connector-3 Connectors how to order

European plug connector-3 European plug connector-3
Product solid pictureEuropean plug connector-3 European plug connector-3top ↑
European plug connector-3 European plug connector-3
PCB install hole dimension(component surface)

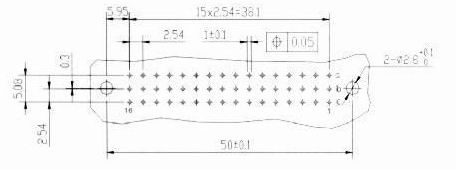

Horizontal soldering (no installation hole):
European plug connector-3 Connectors Product solid picture

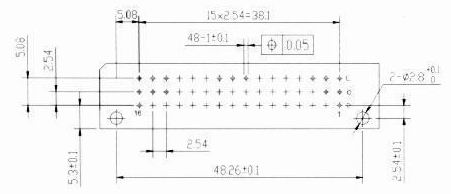

Vertical  soldering (no installation hole):
European plug connector-3 Connectors Product solid picture

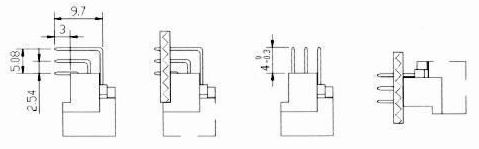

Horizontal soldering:S-1C1                  Vertical  soldering:S-3C1
European plug connector-3 Connectors Product solid picture
European plug connector-3 European plug connector-3
