Female header profile 4.40mm dip type Connector
Female header profile 4.40mm dip type Female header profile 4.40mm dip type
Product solid pictureFemale header profile 4.40mm dip type Female header profile 4.40mm dip typetop ↑
Female header profile 4.40mm dip type Female header profile 4.40mm dip type
Female header profile 4.40mm dip type Connectors Product solid pictureFemale header profile 4.40mm dip type Connectors Product solid picture
Female header profile 4.40mm dip type Female header profile 4.40mm dip type
Brief introductionFemale header profile 4.40mm dip type Female header profile 4.40mm dip typetop ↑
Female header profile 4.40mm dip type Female header profile 4.40mm dip type
    Material:
? Contact: High strength copper alloy
? Insulator body: High temperature thermo plastic
                              (UL94-0)
    Finish
? Contact plating see order information
    Specification:
? Current rating:1A DC
    Operating temperature:-55? to +105?
Electrical
    Contact resistance:30 milliohms max.
    Insulation resistance:5000 Mega ohms min
    Dielectric strength:600V AC)
Mechanical
    Durability:50 cycles
    Retention force:454 gram min. Per PIN
NO. OF Contact
    10-100 PIN
    100PIN+=AO
Female header profile 4.40mm dip type Female header profile 4.40mm dip type
Product Outline DimensionsFemale header profile 4.40mm dip type Female header profile 4.40mm dip typetop ↑
Female header profile 4.40mm dip type Female header profile 4.40mm dip type

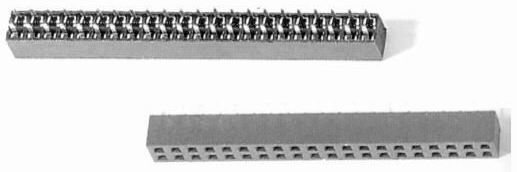

    ? the picture of product

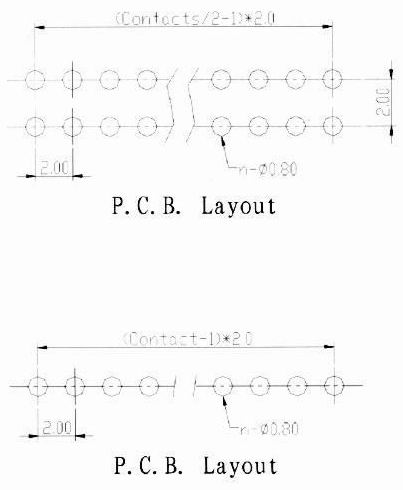

Female header profile 4.40mm dip type Connectors Product Outline Dimensions

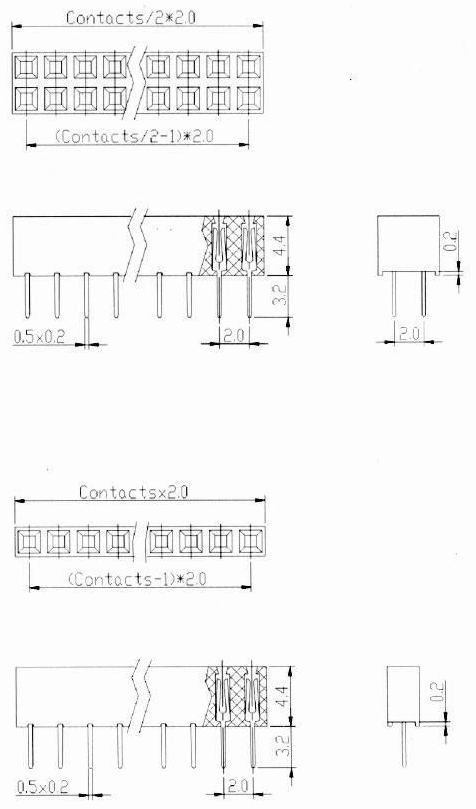

    ? Product Outline Dimensions
Female header profile 4.40mm dip type Connectors Product Outline DimensionsFemale header profile 4.40mm dip type Connectors Product Outline Dimensions
