IC socket and trip-solder type Connector
IC socket and trip-solder type IC socket and trip-solder type
Product solid pictureIC socket and trip-solder type IC socket and trip-solder typetop ↑
IC socket and trip-solder type IC socket and trip-solder type

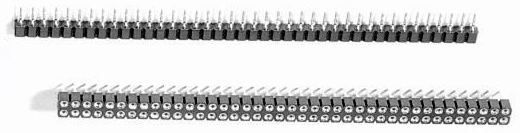

IC socket and trip-solder type Connectors Product solid pictureIC socket and trip-solder type Connectors Product solid picture
IC socket and trip-solder type IC socket and trip-solder type
Brief introductionIC socket and trip-solder type IC socket and trip-solder typetop ↑
IC socket and trip-solder type IC socket and trip-solder type
    Material:
? Pin(outer sleeve):Brass Machined CuZn38pb2
? Clip(contact 4 finger):Beryllium Copper, heat treated
?  Plating(outer sleeve)Tin plated:2um/80u”nickel
                                                       5um/200u” Tin
     Gold plated:2um/80u” nickel, gold or
     Tin plating(see table 4)
?  Plated(contact):2um/80u” nickel, full gold
?  Insulator body(black):Glass filled thermoplastic
                                        Polyester(UL94V-0 rated)
     Electrical:
?  Current rating:3 Amps/contact max
?  Contact resistance:<4mO/contact
?  Insulation resistance:>1000O min. at V=500V
?  Operating Voltage:60V AC/DC
     Mechanical:
?  Operating temperature: Gold plated:-55? to +125?
                                            (continuous)-67o F to+230o F
?  Average insertion force:<250g with steel pin of
                                           F 0.43mm/0.017”
?  Average withdrawal:<50g force with steel pin of
                                      F 0.43mm/0.017”
?  Mechanical life:min.200
?  Soldering temperature:260?,10seconds max.

     Applications and Feature
     The open frame is most common type.
     The open body desinges gives better access (for cleaning
     And inspections) to the PC Board and better air cooling.
    Side and end stackable
    High retention design prevents IC walkout during heavy
    Vibrations
    Closed bottom sleeve for 100%anti-wicking of solder
    Twice free construction
    Low profile type
IC socket and trip-solder type IC socket and trip-solder type
how to orderIC socket and trip-solder type IC socket and trip-solder typetop ↑
IC socket and trip-solder type IC socket and trip-solder type
                                 1     2 3 4
How to Order     SA-xx   x-x-x  o
1 Number of contacts
2 Dip sacking
3 Insulator type
4 Pin plated
Code=No of Contacts
Single row=01 to 40
Double row=02 to 80
06,08,10,14,16,18,20,
22,24,28,
24,28,32,36,40,42,48,
50,52,64
Additional types 1
Consult factory
Code Definition
0 Straight row
1 Double row
3 7.26/300”
4 10.16/0.400”
6 15.24/0.600”
9 22.86/0.900”
Code Definition
0 Open frame
(see page 2 table A)
1 Close frame
(see page 2 table B)
2 Open frame w/o bar
(see page 2 table C)
Code Clip Plated Pin Plated
0 Gold flash Tin 200u”
1 Gold 10u”Tin 200u”
2 Gold 30u”Tin 200U”
3Gold 200u”Tin 200U”
4Gold flash Gold flash
5Gold 10u”Gold flash
6Gold 30u”Gold flash
IC socket and trip-solder type IC socket and trip-solder type
Product Outline DimensionsIC socket and trip-solder type IC socket and trip-solder typetop ↑
IC socket and trip-solder type IC socket and trip-solder type
    ? the picture of product

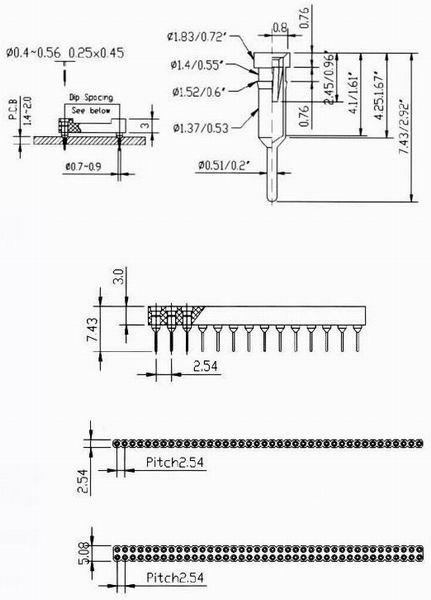

IC socket and trip-solder type Connectors Product Outline Dimensions
