JMC-099M Subminiature and Hermetical Magnetism Keep relay series
JMC-069M Subminiature and Hermetical Magnetism Keep relay using in the hard environmental condition
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Product solid pictureJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
JMC-099M Subminiature and Hermetical Magnetism Keep relay series Relays Product solid picture
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Brief introductionJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
JMC-069M Subminiature and Hermetical Magnetism Keep relay using in the hard environmental condition
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
specificationJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Contact form
2Z
Operating time(ms)
≤4
Coil consumption(W)
≤0.73
Pulse width(ms)
≥12
Contact Resistance (Ω)
Before test
≤0.05
Contact load
Resistive:
High level:1A,28Vd.c.
Low level:10～50μA
10～50mVd.c.
After life
≤0.10
Insulation
resistance
(MΩ)
Normal temperature
normal humidity
≥1000
High temperature
high humidity
≥50
Sealed
≤1×10-1Pa?cm3/s
Dielectric strength
Vr.m.s.
(50Hz)
Under normal condition
300
Life
100,000operations
Under low atmospheric pressure
200
Weight(g)
≤6
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
how to orderJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series

JMC-099M/027  -  0  1   - I

    (1)    (2)    (3)  (4)  (5)

(1)model

(2)specification code

(3)install way

(4)outlet terminal type

(5)environment grade

JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Product Outline DimensionsJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series

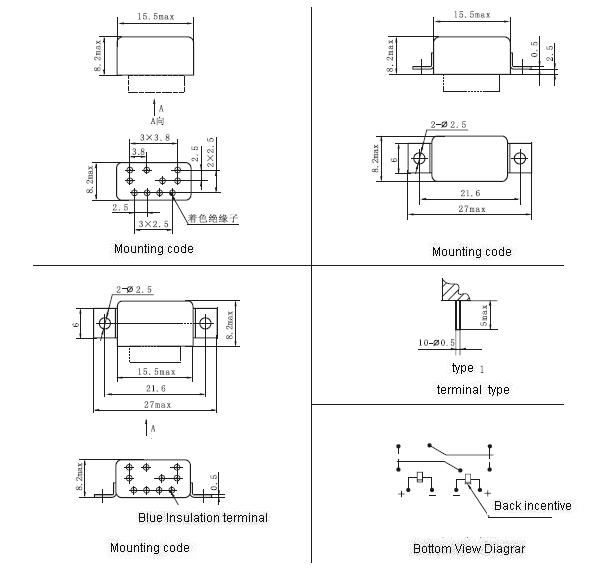

JMC-099M Subminiature and Hermetical Magnetism Keep relay series Relays Product Outline Dimensions
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Environmental ConditionJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Item
Data
Environmental grade
I
II
Ambient Temperature Range (℃)
-55～+85
-65～+125
Relative Humidity
95%(at+40℃)
Low Pressure (kPa)
1
1
Vibration Resistance
Frequency coverage (Hz)
10～2000
10～3000
Acceleration (m/s2)
200
300
Shock  Resistance
Acceleration (m/s2)
750
1000
Pulse lasting time(ms)
6
6
Acceleration (m/s2)
1000
1000
Random vibration  (m/s 2)2 /Hz
30
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Main Technical DataJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Part No
Coil voltage
25 ℃
Full temperature range
Rated (Vd.c.)
Max (Vd.c.)
Coil resistance
(1± 10%)Ω
Operating voltage max (Vd.c.)
Operating voltage max (Vd.c.)
006
6
8.0
63
3.25
4.5
009
9
11.0
140
5.4
7.7
012
12
16.0
254
7.30
10.5
027
27
32.0
1000
13.0
18.0
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series
Characteristics CurveJMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay seriestop ↑
JMC-099M Subminiature and Hermetical Magnetism Keep relay series JMC-099M Subminiature and Hermetical Magnetism Keep relay series

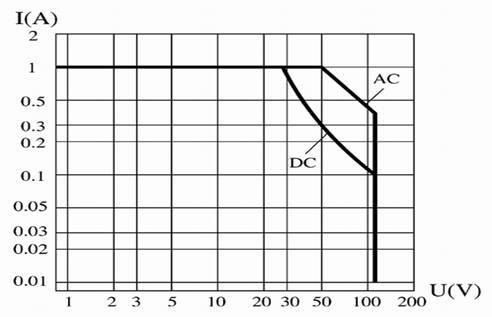

JMC-099M Subminiature and Hermetical Magnetism Keep relay series Relays Characteristics Curve
