2JB15-1 hermetical Electromagnetism relay series
2JT25-1 hermetical Electromagnetism relay using in the hard environmental condition
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
Product solid picture2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
2JB15-1 hermetical Electromagnetism relay series Relays Product solid picture
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
Brief introduction2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
2JT25-1 hermetical Electromagnetism relay using in the hard environmental condition.
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
specification2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
Contact form
2 form
Operating  time（ms）
≤15ms
Leakage(Pa.cm3/s)
≤1×10-3Pa·cm3/s
Pulse width（ms）

Contact Resistance(Ω)
Before test
≤0.015Ω
Contact load
28Vd.c.，15A，Resistive
After test
≤0.03Ω
Insulation
resistance
Under normal condition
≥500MΩ
Life
2×104
Under high temperature
And high humidity
≥10MΩ
Dielectric Withstanding
Voltage (50Hz)
Under normal condition
≥500Vr.m.s.,50Hz,60s
Weight
≤46g
Under low-pressure
≥250Vr.m.s.,50Hz,60s

Main technical data


2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series

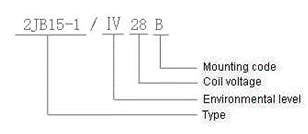

how to order2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series

2JB15-1 hermetical Electromagnetism relay series Relays how to order

2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series

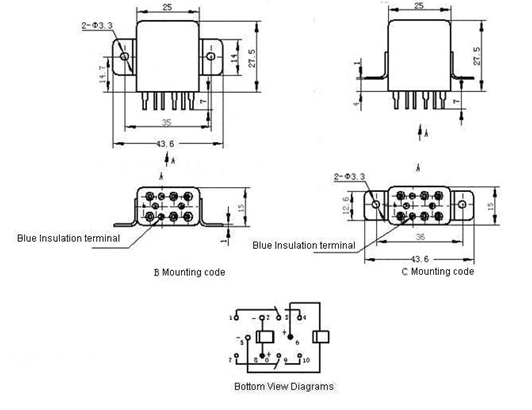

Product Outline Dimensions2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
2JB15-1 hermetical Electromagnetism relay series Relays Product Outline Dimensions
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
Environmental Condition2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
No.
Item
Ⅰ
Ⅱ
Ⅲ
Ⅳ
1
Ambient Temperature Range（℃）
-55℃～85℃
2
Relative Humidity
40±2℃，90～95％
3
Low atmospheric pressure（kPa）
0.67kPa～0.27kPa
4
Vibration
10～500Hz  98m/s2
10～2000Hz   147m/s2
10～2000Hz 196m/s2
5
Shock（m/s2）
294m/s2，11ms
490m/s2，11ms
735m/s2，6ms
6
Acceleration（m/s2）
196 m/s2
490m/s2
735m/s2
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
Main Technical Data2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay seriestop ↑
2JB15-1 hermetical Electromagnetism relay series 2JB15-1 hermetical Electromagnetism relay series
Coil voltage
25℃
Temperature range
Rated value
Vd.c.
Coil resistance
(1±10%)Ω
Working voltage(Max) Vd.c.
Working voltage(Max) Vd.c.
28
320
18
23
