JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
JUC-1M, JUC-068M is contact-and-induction version thermostats.
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
Product solid pictureJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT Relays Product solid picture
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
brief introductionJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
JUC-1M, JUC-068M is contact-and-induction version thermostat, which has passed UL certification. They are characterized by small size, light weight, high precision and outstanding general-purpose function, suitable for temperature controlling and overheat protection in equipments of aerospace and other fields.
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
specificationJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT

Contact arrangement
1form B, 1form A
Operating temperature range
-10? to +150?
Operating temperature tolerance
See main technical data table
Temperature restoration
See main technical data table
Contact Resistance(O)
Before life
0.05 ohms max
Contact rating
resistive:
  JUC-1M:1A28Vd.c.
         1A115/220V?.?.
         (400/50Hz)
  JUC-068M:5A28Vd.c.
           3A,115/220Va.c.
           (400/50Hz)
After life
0.10 ohms max
Insulation Resistance
(MO)
Under normal condition
500 megohms min
Under high temperature and high humidity
10 megohms min
Dielectric Strength Vr.m.s.(50Hz)
Under normal condition
500 Vrms
Durability
JUC-1M:  2×104Operations
  JUC-068M:1×104Operations
Under low atmospheric pressure
350 Vrms
weight(g)
9 gms max

JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
how to orderJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT Relays how to order
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
Environmental ConditionJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
No.
Item
Data
1
Environmental level
?
?
?
2
Ambient Temperature Range(?)
-65? to +125?
3
Low atmospheric pressure(kPa)
1.06 kPa
1.06 kPa
1.06 kPa
4
Vibration
Frequency range(Hz)
10 to 55 Hz
10 to 500 Hz
10 to 2000 Hz
Acceleration(m/s2)
Double amplitude 1.5mm
10g
15g
5
Shock
Acceleration(m/s2)
15g
50g
50g
Pulse duration(ms)
11ms
11ms
11ms
6
Acceleration(m/s2)

20g
20g
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
Main Technical DataJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
Part No.
Normal Operating temperature value
Operating temperature tolerance
Temperature restoration range
-10? to +110?
Any value within range
-10? to+110?
±3?,±5?,±7?
Upper limit
Below corresponding operating temperature value 3?

Lower limit

Below corresponding operating temperature value 15?
+111? to +150
Any value within range+111? to+150?
Upper limit
Below corresponding operating temperature value 3?

Lower limit

Below corresponding operating temperature value 20?
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT

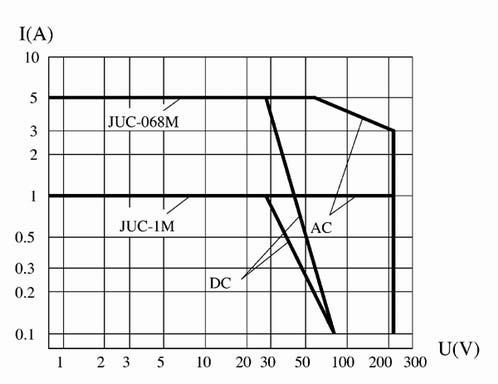

Load CharacteristicsJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT Relays Load Characteristics
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
Outline Mounting DimensionsJUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTATtop ↑
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT
JUC-068 ULTRAMINIATURE AND HERMETICALLY SEALED THERMOSTAT Relays Outline Mounting Dimensions
