JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
The product is 1/5 crystal cover electromagnetic keeping relay .
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
Product solid pictureJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays Relays Product solid picture
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
brief introductionJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
The product is 1/5 crystal cover and duel lines in-line electromagnetic keeping relay with high frequency signal  transportation function. The outline dimensions , mounting mode, terminal types meet the requirementS of China national military standard and military standard for relays in the other country, suitable for handing and switching signal in the field of air and the other fields.
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
specificationJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays

Contact arrangement
2Z
Operating  time(ms)
=4
Power dissipation of winding(W)
=0.6
Pulse width(ms)
=12
Frequency specification
100MHz
Contact Resistance(O)
Before life
=0.05
Contact rating
resistive:
     high lever:1A,28Vd.c.
    low lever:10~50μA
             10~50mVd.c.
After life
=0.10
Insulation Resistance
(MO)
Under normal condition
=1000
Under high temperature and high humidity
=50
Dielectric Strength Vr.m.s.(50Hz)
Under normal condition
500
Durability
1×105 times
Under low atmospheric pressure
350
weight(g)
=6

JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
how to orderJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays Relays how to order
????= environmental lever
?????=terminal type
????=mounting mode
????= Part No.
????= product type
Enterprise standard code:Q/Lk.J(02)18
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
Environmental ConditionJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
No.
Item
Data
1
Environmental level
?
?
2
Ambient Temperature Range(?)
-55~+85
-65~+125
3
Relative Humidity
Up to 95% at +40?
4
Low atmospheric pressure(kPa)
1.06
5
Vibration
Frequency range(Hz)
10~2000
10~3000
Acceleration(m/s2)
200
300
6
Shock
Acceleration(m/s2)
750
1000
Pulse duration(ms)
6
6
7
Acceleration(m/s2)
1000
1000
8
Random vibration(m/s2)2/Hz
30
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays
Main Technical DataJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays

Part No.
Cable voltage
25?
Temperature range
Rating
(Vd.c.)
Max
(Vd.c.)
Cable resistanceO±10%
Max operating voltage (Vd.c.)
Max operating voltage (Vd.c.)
006
6
8.0
63
3.25
4.5
012
12
16.0
254
7.30
10.5
027
27
32.0
1000
13.0
18.0
?If you need the other types of winding voltage, connect us?

JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays

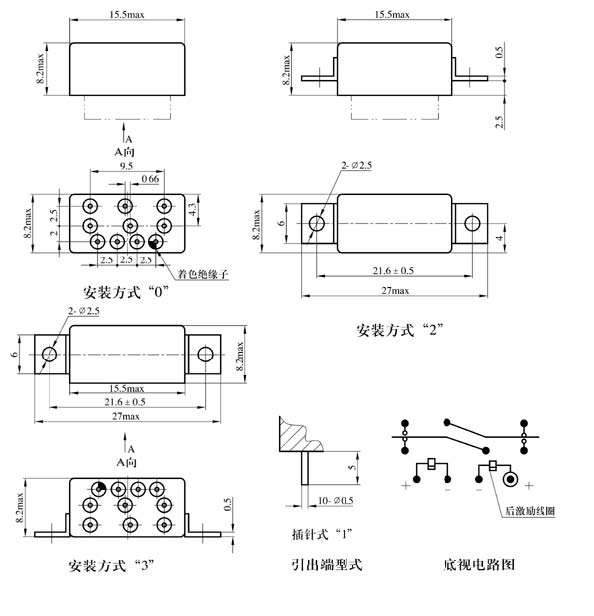

Outline Mounting Dimensions and Bottom View CircuitJMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays JMC-099MA Ultraminiature and hermetically sealed electromagnetic keeping relays top ↑
