Acceleration spec

(fixed acceleration)

Overload acceleration(g)

8～10

the normally open contact  of overload switch connect at responsive acceleration reach 8g～10g and duration is 17ms～23ms

Duration(ms)

17～23

Contact group

4Z

Contact resistance

(except outer down-leadΩ)

Before test

≤0.1

Unlocking coil

parameter

Coil resistance

(Ω)

300(1 ± 10%)

After life

≤0.2

Working voltage (Vd.c)

27 ± 3

Insulation Resistance(MΩ)

Normal

≥500

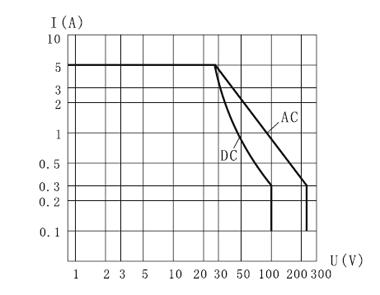

Contact loading

Resistive: 5A ， 28.5Vd.c.

Extreme temperature and humidity

≥50

Life

1000 Operations

Dielectric strength
Vr.m.s.
(50Hz)

Normal

500

Weight(g)

≤ 170

Life test and

low  pressure

150

Locking and unlocking function

Electromagnetic locking, electrical unlocking

Any requirement,please negotiate with us

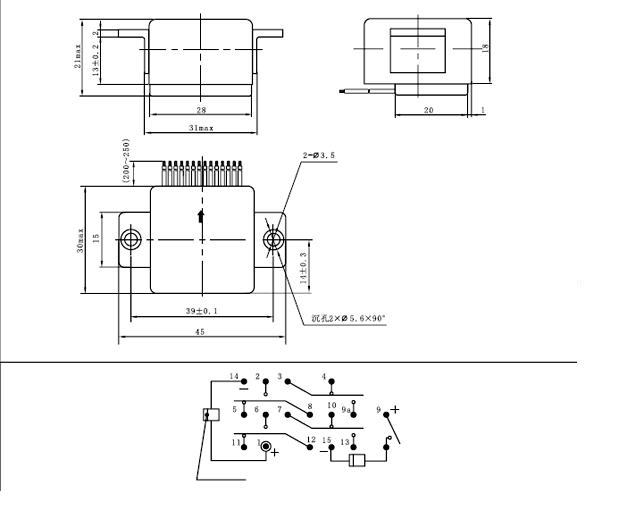

GK-8A /   (8～10)g

 (1)        (2)

(1)model

(2)overload acceleration

item

Ambient Temperature Range (℃)

-55～85

relative humidity

95%(at 40℃)

low pressure (kPa)

0.3

vibration resistance

frequency coverage (Hz)

10 ～ 2000

power spectral density （ m/s²）² /Hz

16(working trend:8)

Shock  Resistance

acceleration (m/s²)

500

Impulse length (ms)

11

acceleration (m/s²)

500
