SARG-RELAY
.Automobile Relays with high switching power. .SARG are capable of switching 14VDC 20A. .Low cost and high performance. .Sealed and double relay are available,double relay hsa two sparate relay structure.
Product solid pictureSARG-RELAY SARG-RELAYtop ↑
SARG-RELAY SARG-RELAY
SARG-RELAY Relays Product solid picture
SARG-RELAY SARG-RELAY
specificationSARG-RELAY SARG-RELAYtop ↑
SARG-RELAY SARG-RELAY

Contact
Arrangement
1 Form C; 2 Form C
Contact material
Silver alloy
Contact resistance (1A 6VDC)
100mO Max.
CQC rating Resistive load (cos?=1)
25A 14VDC
Max.switching voltage
40VDC
Max. Switching current
25A
Expected life(min.ope)
Mechanical (at 180 cpm)
1X107
Electrical (at 20 cpm)
1X105
Characteristics
Operate time
3 msec.Max.
Release time
1.3 msec.Max.
Operating humidity
45~85%RH
Initial breakdown voltage
Between contact and coil
500VAC (50/60Hz) for 1 min.
Between open contacts
500VAC (50/60Hz) for 1 min.
Insulation resistance
100MOMin.(500VDC)
Ambient temperature
-40?~+120?
Temperature rise (Max.)
65K
Shock resistance
Functional
30G Min.
Destructive
45G Min.
Vibration
10Hz-500Hz,1.5mm
Unit weight
Approx. 5g/10g
Coil
Nominaloperatingpower
0.56W



SARG-RELAY SARG-RELAY

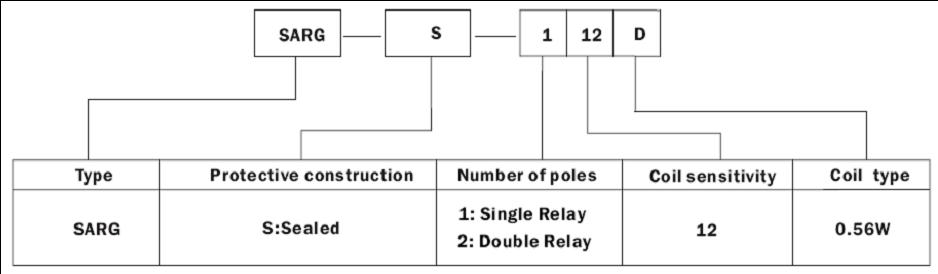

how to orderSARG-RELAY SARG-RELAYtop ↑
SARG-RELAY SARG-RELAY

SARG-RELAY Relays how to order
COIL (at 20°C)
Voltage code
Nominal voltage (VDC)
Nominal current (mA)
Coil resistance (O,±10%)
Drop-out voltage (VDC)
Pick-up voltage (VDC)
Nominal operating power (W)
Max allowable voltage (VDC)
12
12
47
255
1.0
7.2
0.56W
15

SARG-RELAY SARG-RELAY
Product Outline DimensionsSARG-RELAY SARG-RELAYtop ↑
SARG-RELAY SARG-RELAY

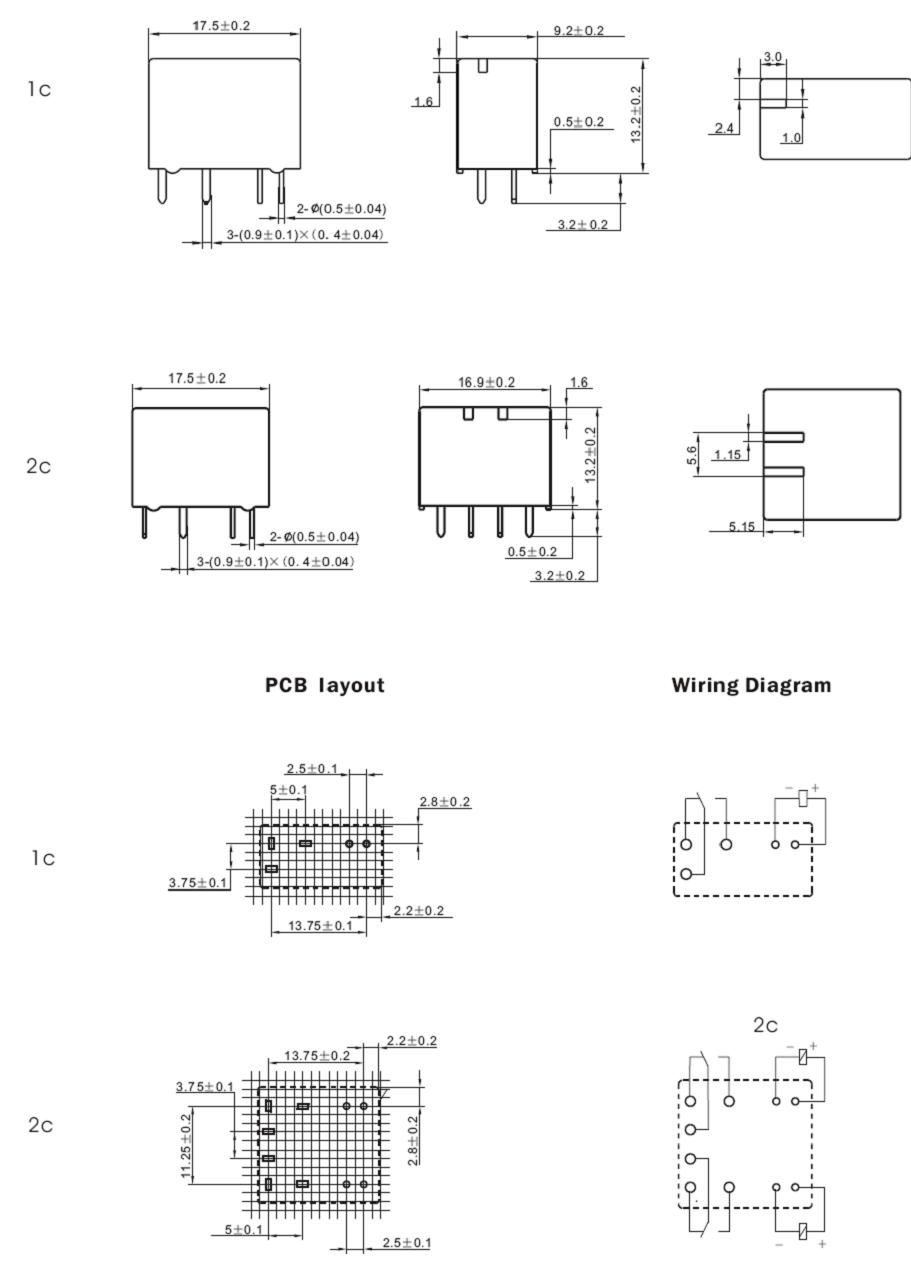

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT(unit:mm)
SARG-RELAY Relays Product Outline Dimensions



SARG-RELAY SARG-RELAY
Typical AppcicationsSARG-RELAY SARG-RELAYtop ↑
SARG-RELAY SARG-RELAY

?Central locks
?Electonic positioning device
?Sunsreen derice
?Chair odjustmet device
?Automatic doors
?Seatbelt pretensioner




SARG-RELAY SARG-RELAY

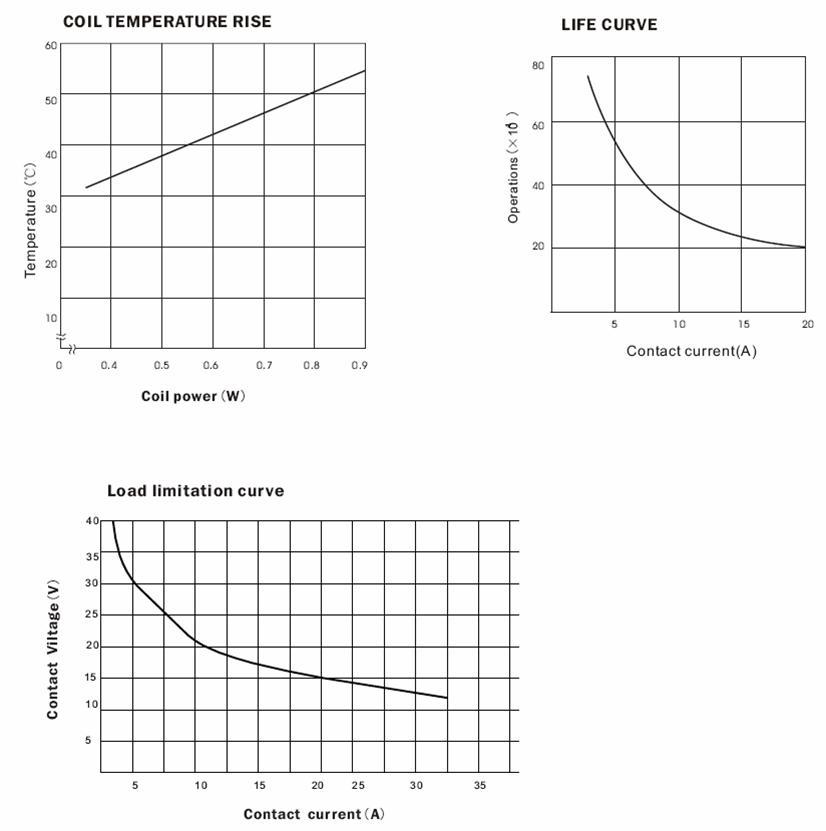

Characteristics CurveSARG-RELAY SARG-RELAYtop ↑
SARG-RELAY SARG-RELAY

SARG-RELAY Relays Characteristics Curve

SARG-RELAY SARG-RELAY
