SARL-H-RELAY
.40A rating at 85℃. .Compatible Faston Terminal arrangement with this kind of power relay. .Simple magnetic circuit to meet mass production for low cost offer. .Operating ambient temperature range covers from -40℃ to 85℃ .
Product solid pictureSARL-H-RELAY SARL-H-RELAYtop ↑
SARL-H-RELAY SARL-H-RELAY
SARL-H-RELAY Relays Product solid picture
SARL-H-RELAY SARL-H-RELAY
specificationSARL-H-RELAY SARL-H-RELAYtop ↑
SARL-H-RELAY SARL-H-RELAY

Contact
Arrangement
1a
Contact material
Silver alloy
Contact resistance (1A 6VDC)
100mO Max.
Rating Resistance load (cosf=1)
40A 14VDC
Max.switching current
40A
Max.switching power
500W
Expected life(min.ope)
Mechanical (at 120 cpm)
1X107
Electrical (at 20 cpm)
1X105
Characteristics
Operate time
20 msec.Max.
Release time
10 msec.Max.
Operating humidity
45~85%RH
Initial breakdown voltage
Between contact and coil
500VAC (50/60Hz) for 1 min.
Between open contacts
500VAC (50/60Hz) for 1 min.
Max. ON/OFF Switching
Mechanically
100MOMin.(500VDC)
Electrically
-45?~+85?
Insulation resistance
75?
Ambient temperature
20G Min.
Temperature rise(Max.)
100G Min.
Shock resistance
Functional
10G Min.
Destructive
100G Min.
Vibration resistance
Functional
10 TO 55 Hz at double Amplitude of 1.5mm
Destructive
10 TO 55 Hz at double Amplitude of 1.5mm
Unit weight
Approx.36g
Coil
Nominaloperatingpower
1.8W

SARL-H-RELAY SARL-H-RELAY
how to orderSARL-H-RELAY SARL-H-RELAYtop ↑
SARL-H-RELAY SARL-H-RELAY

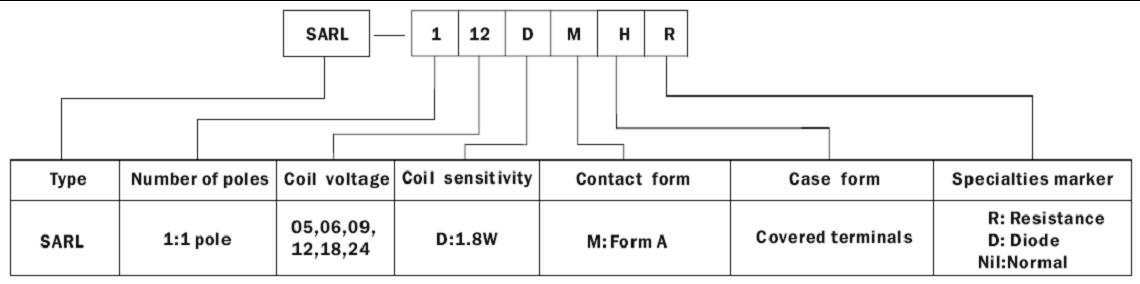

SARL-H-RELAY Relays how to order
COIL (at 20°C)
Voltage code
Nominal voltage (VDC)
Nominal current (mA)
Coil resistance (O±10%)
Drop-out voltage (VDC)
Pick-up voltage (VDC)
Nominal operating power (W)
Max allowable voltage (VDC)
05
5
357.14
14
5%Min.
70%Max.
1.8
130% of nominal voltage
06
6
300.00
20
09
9
200.00
45
12
12
150.00
80
18
18
100.00
180
24
24
75.00
320

SARL-H-RELAY SARL-H-RELAY
Product Outline DimensionsSARL-H-RELAY SARL-H-RELAYtop ↑
SARL-H-RELAY SARL-H-RELAY

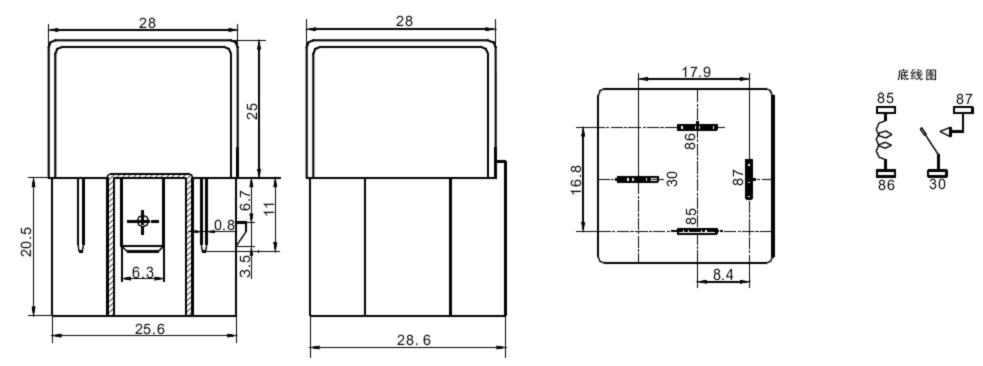

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT(unit:mm)
SARL-H-RELAY Relays Product Outline Dimensions

SARL-H-RELAY SARL-H-RELAY
Typical AppcicationsSARL-H-RELAY SARL-H-RELAYtop ↑
SARL-H-RELAY SARL-H-RELAY
For direct connection with Cell Motors, Transmission. and Anti-Locking Brake System, etc.

SARL-H-RELAY SARL-H-RELAY
Characteristics CurveSARL-H-RELAY SARL-H-RELAYtop ↑
SARL-H-RELAY SARL-H-RELAY

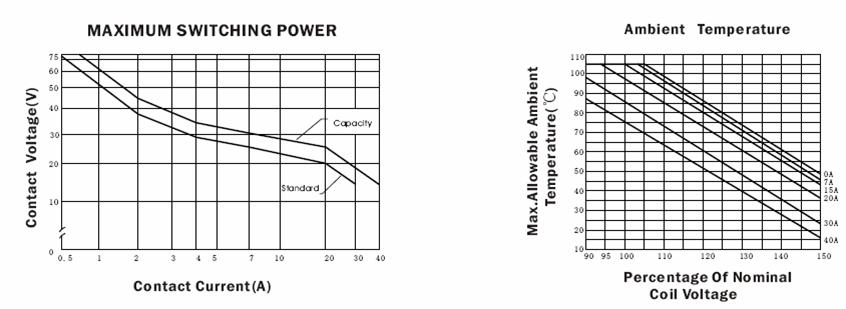

SARL-H-RELAY Relays Characteristics Curve
