DC1 Auto Backup-Lamp Switch series
Total
>
Switch series
>
other Switch series
>
DC1 Auto Backup-Lamp Switch series
DC1 Auto Backup-Lamp Switch series
DC1 Switch is used for turning on/off the Auto backup-lamp when reversing
Product solid picture
Brief introduction
specification
Product Outline Dimensions
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
Product solid picture
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
top ↑
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
Brief introduction
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
top ↑
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
DC1 Switch is used for turning on/off the Auto backup-lamp when reversing
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
specification
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
top ↑
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
Contact Load
DC 12V 12A or DC 24V 6A
Operate distance
The switch operate distance is 0.5～1.2mm
Voltagedrop
The voltagedrop between the contacts <=30mV under 3A rated current
Insulator resistance
The resistance between contacts >=10MΩ
Electric Intensity
AC 660V covers 1min。
Life
50,000times
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series

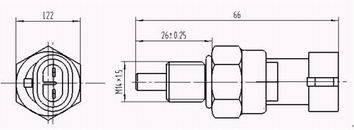

Product Outline Dimensions
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
top ↑
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
DC1 Auto Backup-Lamp Switch series DC1 Auto Backup-Lamp Switch series
